SolarFlash® Profile Tile Kit

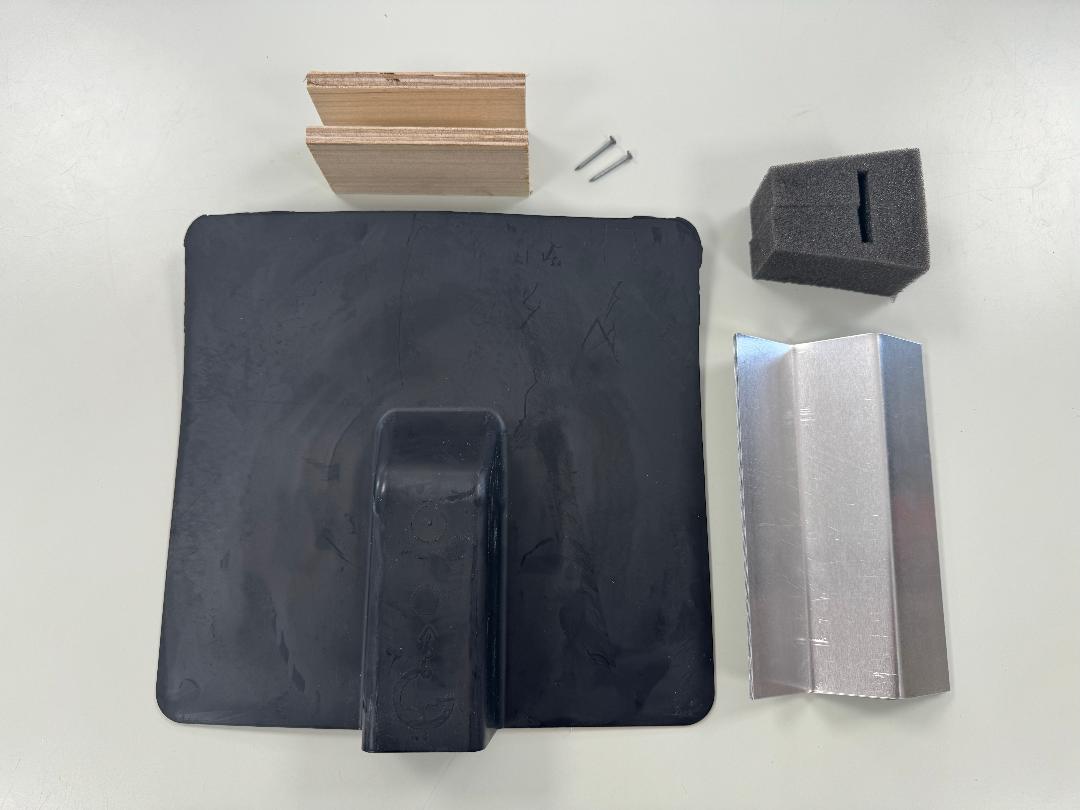

Kit includes:

1 x Small FlexiFlash®

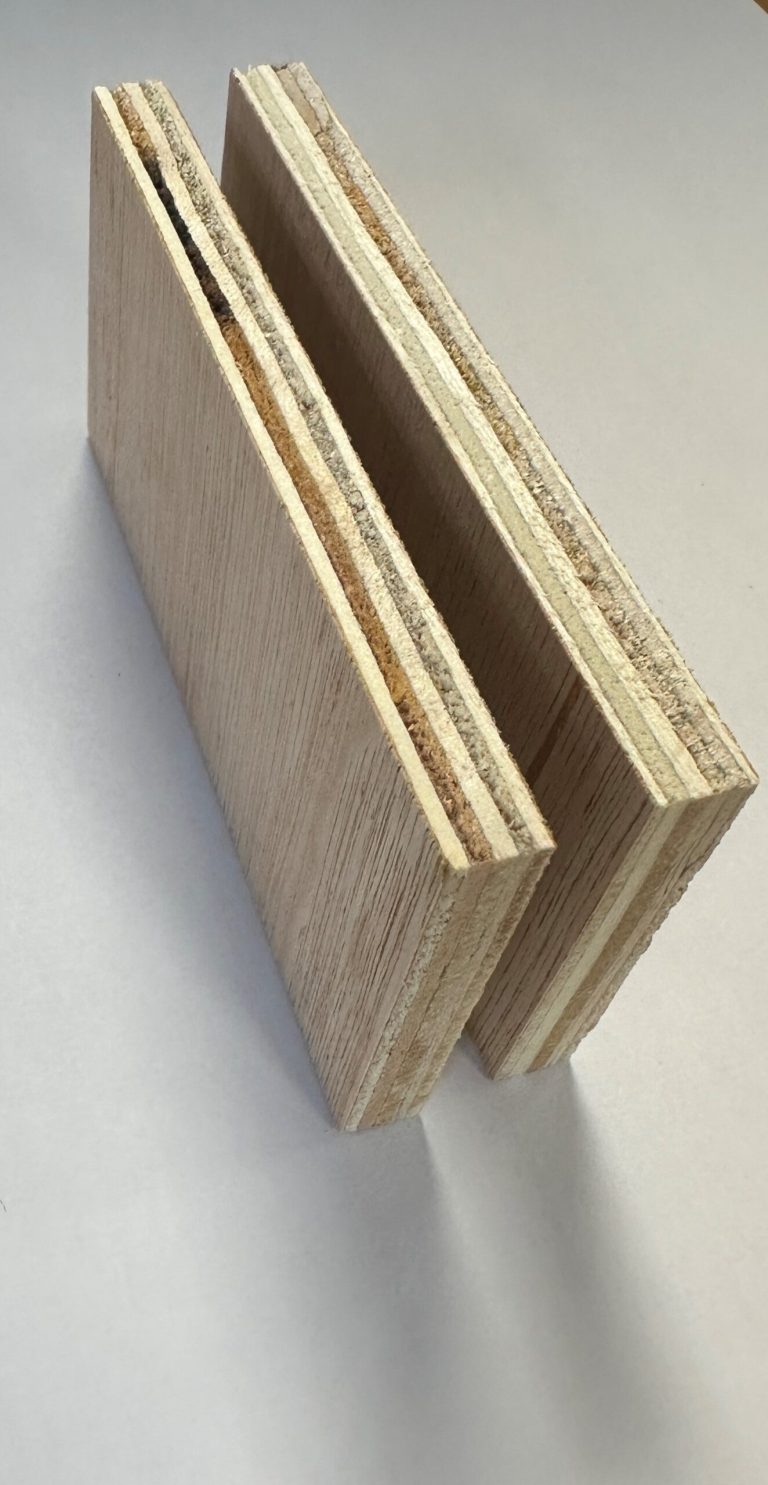

2 x Wooden shims (packings)

1 x Foam Insert

1 x Metal Support

2 x Nails

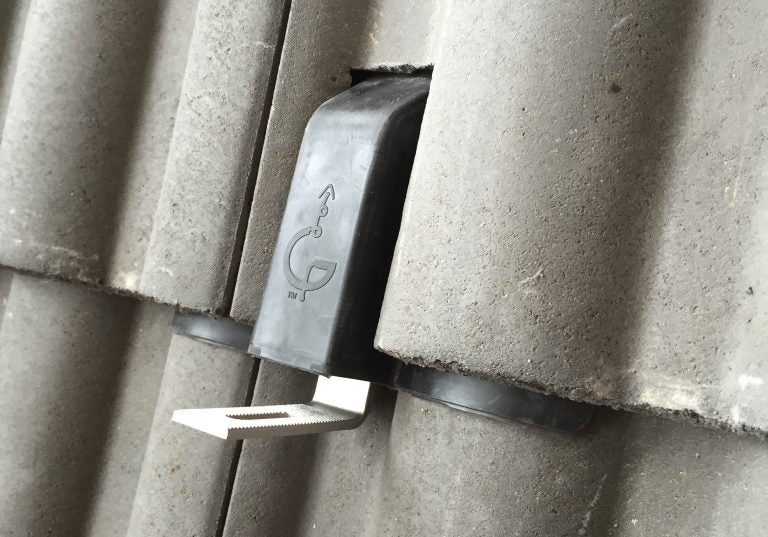

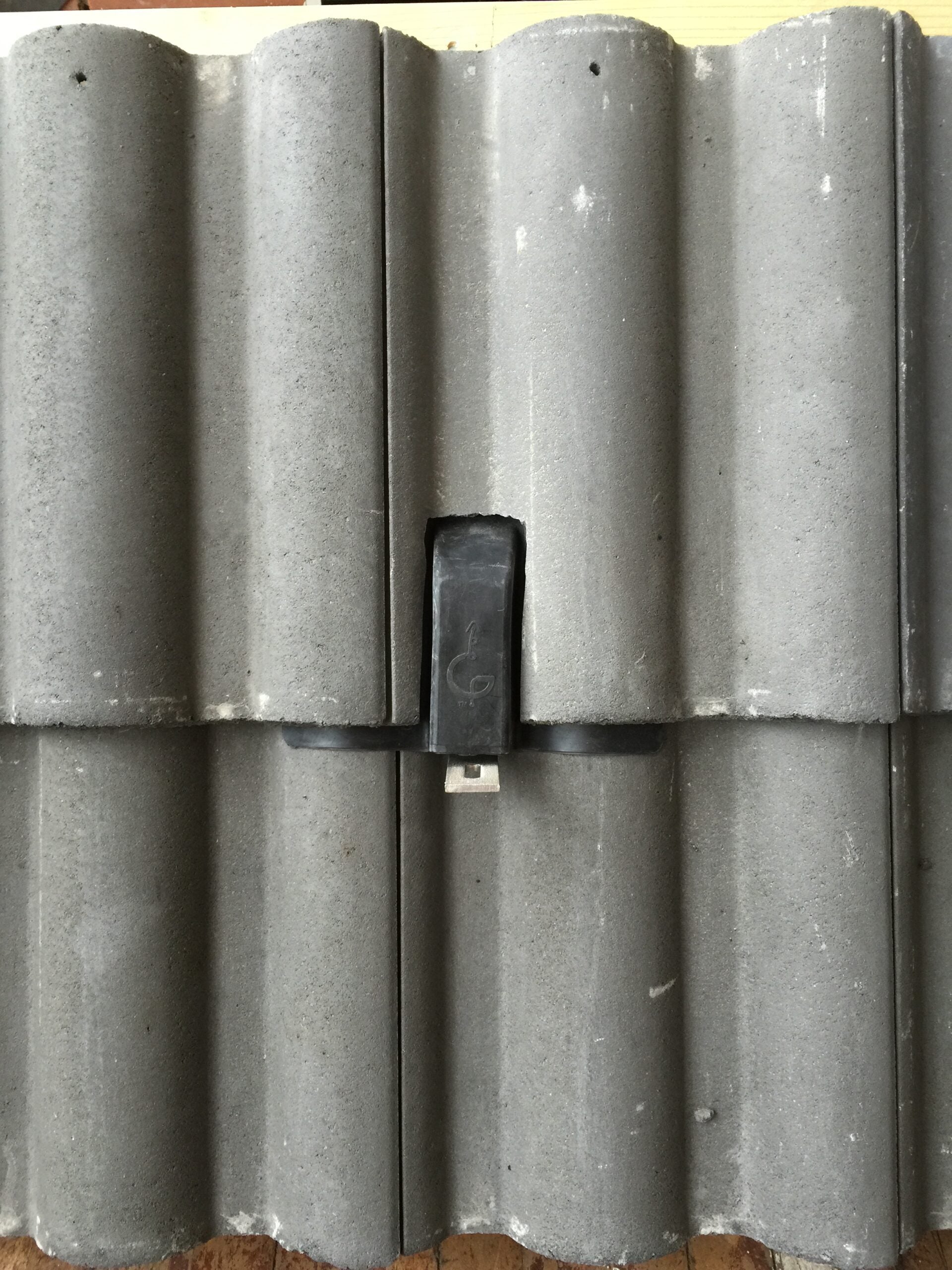

The Profile Tile kit is designed for use on profile tiles (eg Redland Regent, Double Roman, Ludlow Plus, Marley Mendip, Ludlow Major).

The FlexiFlash® is the same size as the ‘small’ SolarFlash®,  however it is made from a flexible material which allows it to mould around the curve on a profile tile.  The dimensions of the FlexiFlash are 250mm width/235mm length.  The hood is 50mm wide/140mm length/40mm depth.  The hood is the same size on all types of SolarFlash®.  The length of the FlexiFlash is based on tiles being single lap (up to 100mm head lap).

The aluminium support has been included to support the flexible back of the FlexiFlash and must be used.

*It can be quicker to cut the tile rather than notch*

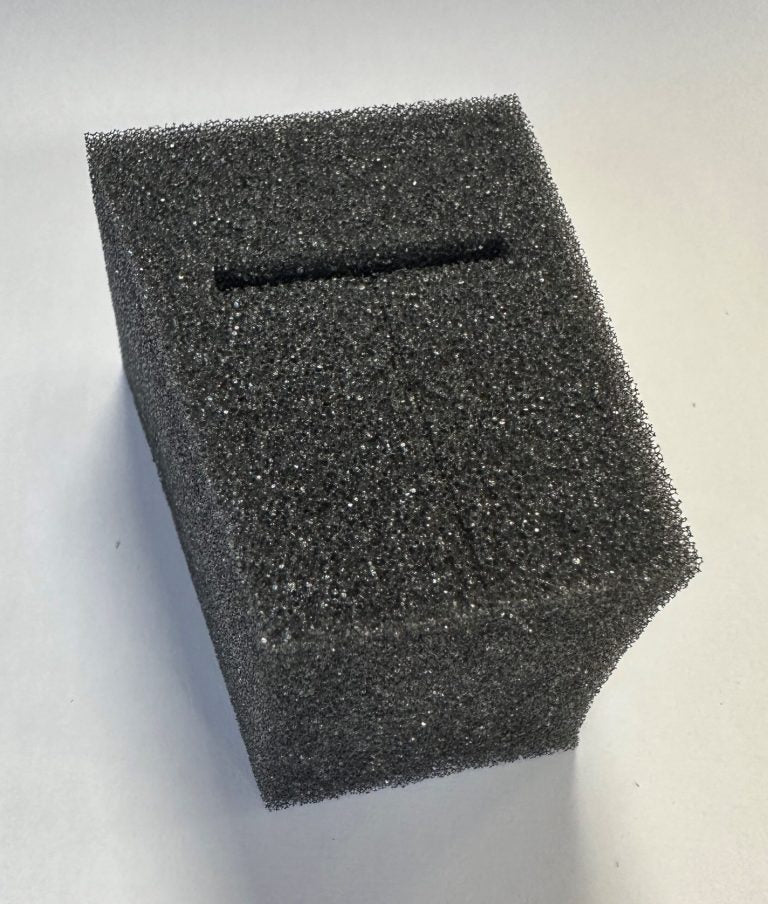

There is a foam included in every kit which is required to seal the hood.  The foam was designed with snow in mind to stop the wind taking light snow into the roof.
