Renew x Fastensol End Clamp

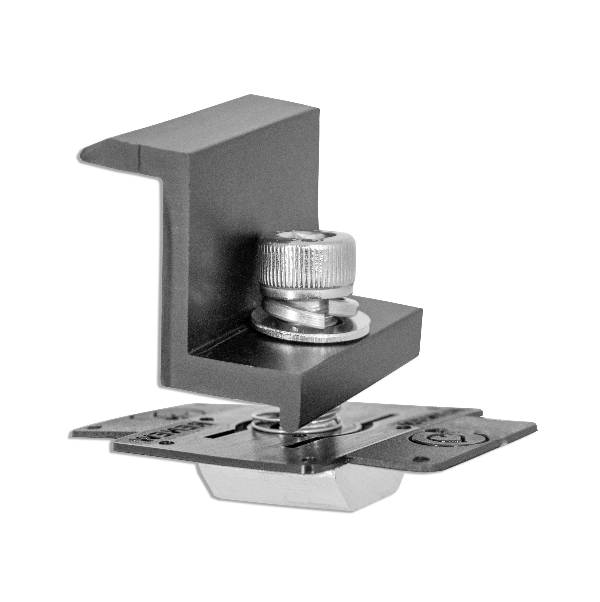

End Clamps are designed to securely anchor solar panels to the mounting rails at the ends of each row, ensuring stability and structural integrity. This version features a plastic spring-mounted installation guide that holds the clamp in place during installation, making the process quicker and more efficient.

Suitable for both pitched and flat roofs, the clamps are compatible with various cladding types, including tiled, slate, and sheet metal. They can be used on roofs with slopes up to 60 degrees and withstand wind loads of up to 60m/s and snow loads of 2.0kN/m². With a maximum building height capacity of 20 meters, these clamps provide versatile and reliable support for solar systems.

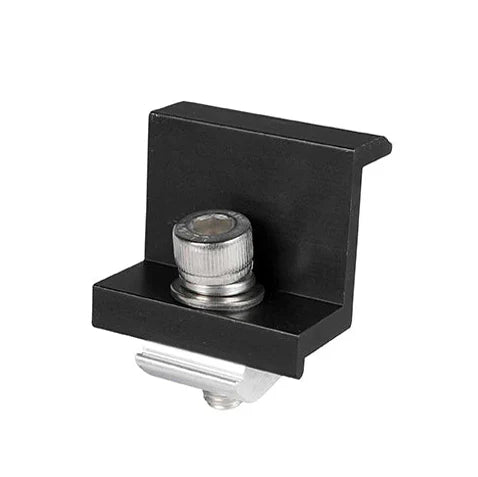

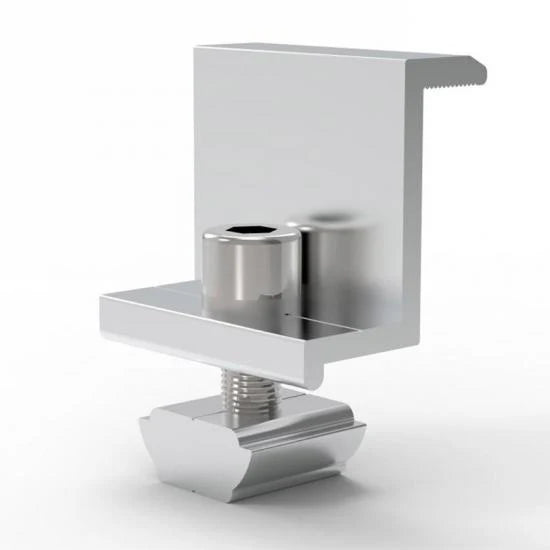

Constructed from high-strength aluminium, the V2 End Clamps are available in Black and Silver finishes to complement different solar panel designs. They are adjustable to accommodate panel frame thicknesses of 30mm, 35mm, and 40mm, ensuring a secure fit regardless of panel size. The spring-loaded version includes a plastic installation guide, simplifying positioning and alignment during installation.
