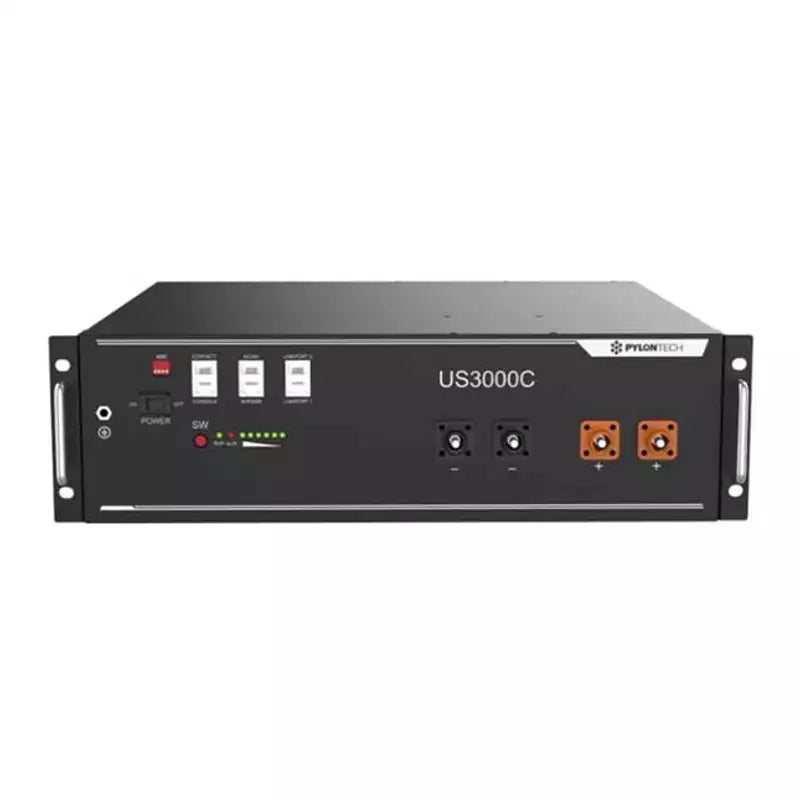

Pylontech US3000C 48V 3.5kWh Lithium Storage Solar Battery

Pylontech US3000C lithium storage 48V 3.5kWh including BMS

Solar lithium storage of the latest generation, which offers maximum safety and a long service life even with regular deep discharge. The solar storage has an integrated battery management system (BMS) in each individual module.

The Pylontech can be mounted in 19 inch racks or with the accessory holders on top of each other or standing side by side. The system is modular and can therefore be individually adapted to the needs of your household or commercial operation. The memory can be connected to a total of 16 pieces.

Technical specifications:

• Technology: Lithium iron phosphate LiFePo4 Service
• life: 4500 cycles at 90% depth of discharge
• Rated voltage: 48V Rated
• capacity: 3.5 kWh, 74Ah Charging
• voltage range: 52.5 - 54.0V
• Recommended charging current / discharging current: 37A
• Maximum charging current / discharging current: 74A (peak 100A for 15 seconds)
• Safety certificates: TÜV, UN 38.3
• Length: 440mm
• Width: 420mm
• Height: 132mm
• Capacity: 74Ah
• Warranty: 7 years
