Henley Block – 100 Amp 250V Cable Connector

Henley Block – 100 Amp 250V Cable Connector x 1

A heavy-duty junction block designed for secure and professional-grade cable connections in electrical systems, including solar PV installations. Built to BS EN 60670 standards, this Henley Block is rated for up to 100 Amps and supports conductor sizes up to 35mm².

Key Features:

• Rated Capacity: 100 Amp / 250V

• Max Conductor Size: 35mm²

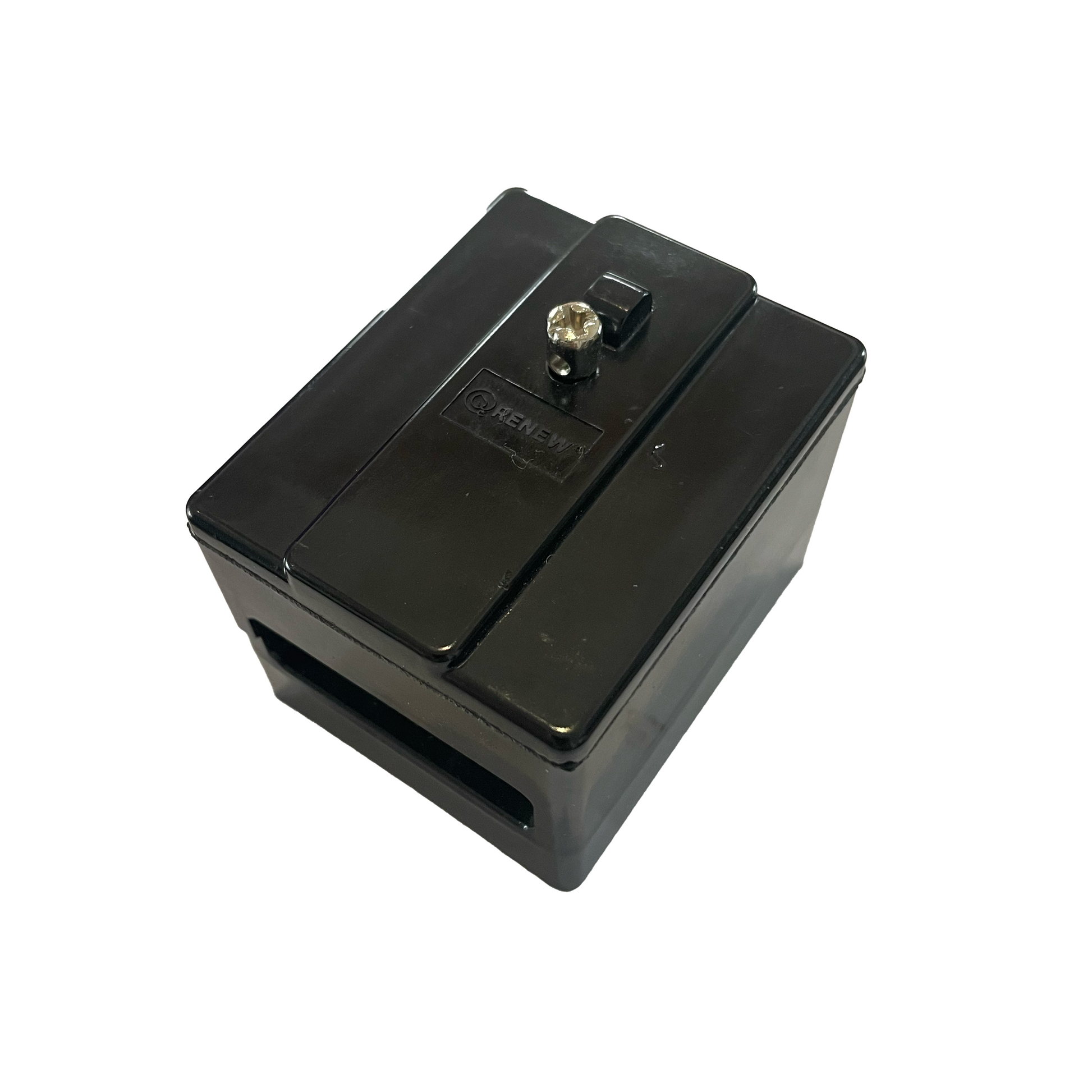

• 2 Captive Cover Fixing Screws: Ensures the cover is securely fastened and tamper-resistant

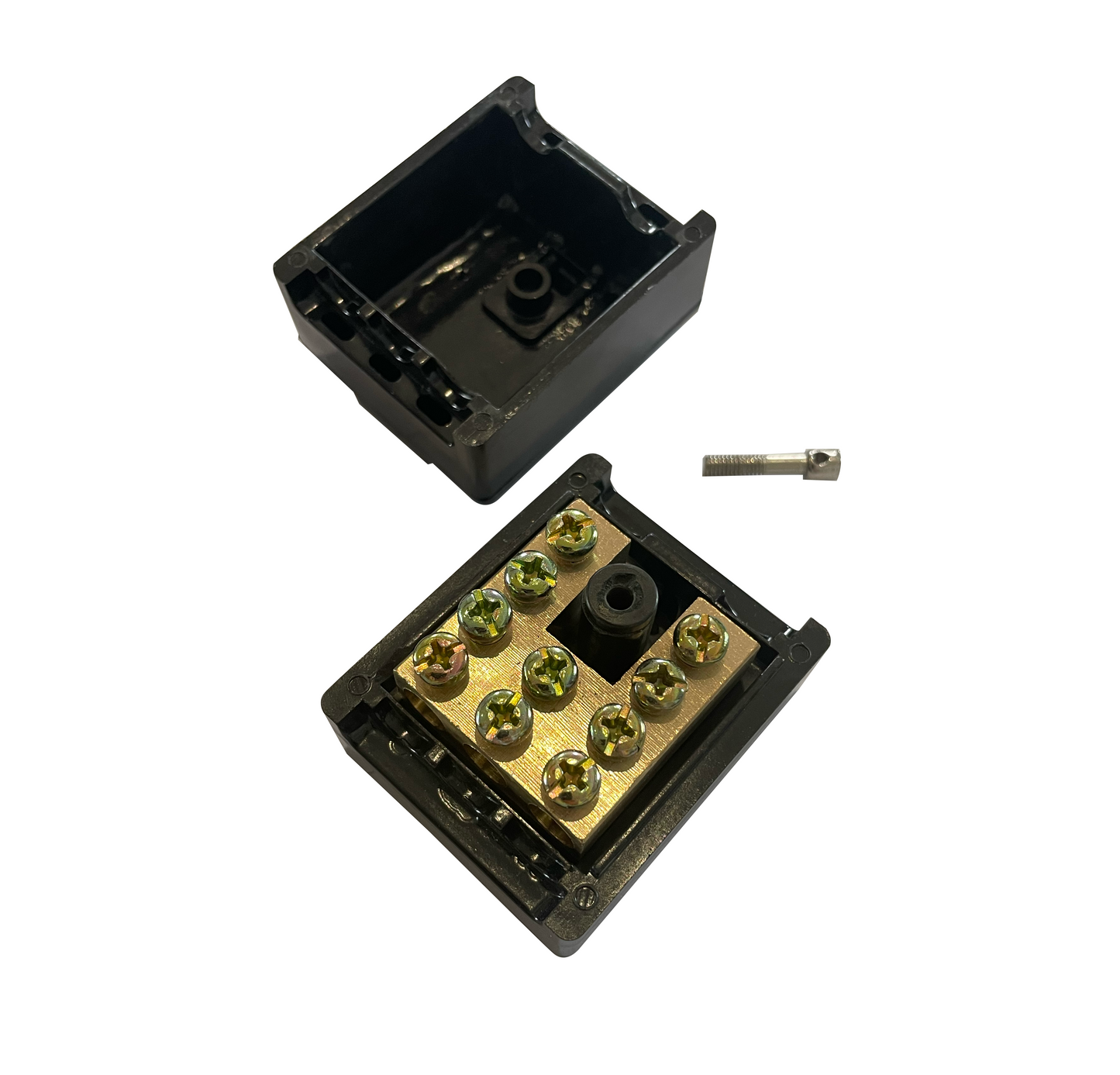

• Heavy-Duty Terminals: Two screws per conductor for superior clamping strength and electrical contact

• Individual Cable Entry Knockouts: Flexible cable management with clean entry points

• Cord Grip at Both Cable Entries: Prevents strain and cable movement

• Includes Terminal Cap: Provides additional protection and safety

Application in Solar Installations:
This Henley Block is ideal for solar PV systems where the inverter output needs to be connected into the property’s main electrical supply. Commonly used to split the AC mains feed, it allows for a safe and compliant way to route generated power to the consumer unit without interfering with the main board directly. Its robust design and compatibility with large conductors make it especially suited for high-current solar applications.

A reliable, safe, and installer-approved choice for connecting solar and electrical systems with confidence.
