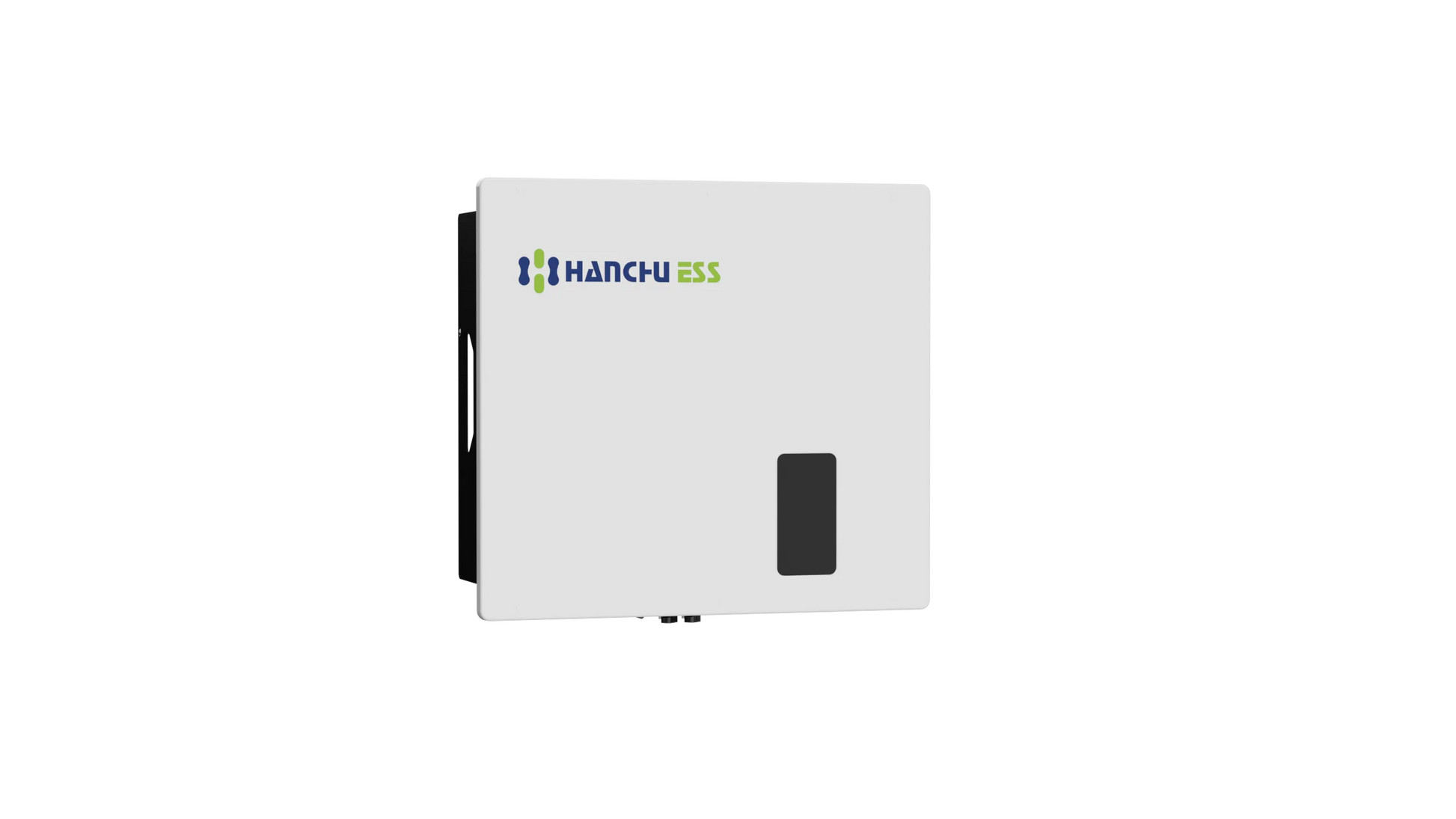

Hanchu HC-6KW-HY ESS 6.0KW Single Phase Hybrid Inverter

The HC-6KW-HY series is a single-phase inverter specifically designed for residential homes, supporting multi-unit parallel operation and perfectly compatible with the Hanchu LV series batteries. It includes multiple power options of 3/3.68/4/5/6kW, catering to various scales and application scenarios.

Specification

• Max. PV array power - 9000 Wp
• Max. input voltage - 550 V
• MPPT voltage range / rated input voltage -40 V to 530 V / 380 V
• Min. input voltage / start voltage - 40V / 50 V
• No. of independent MPP trackers/ strings per
• MPPT input -2/1
• Max. input current per MPP tracker -16A
• Max. short-circuit current per MPP tracker - 20A
• Nominal battery voltage - 48 V/51.2V
• Battery voltage range - 40 V to 60 V
• Max. charging / discharging power -5000 W /5000 W
• Max. charging current / Max. discharging current - 100 A / 100 A
• Battery type LiFePO4
• Dimensions 483 / 455 / 193.5 mm
