Solar Cable Connectors - 50 packs, 16Amp, 1000V, 100 male & 100 female
Solar Cable Connectors - 50 packs, 16Amp, 1000V, 100 male & 100 female
SKU:SKU_YX_0015X50
Couldn't load pickup availability

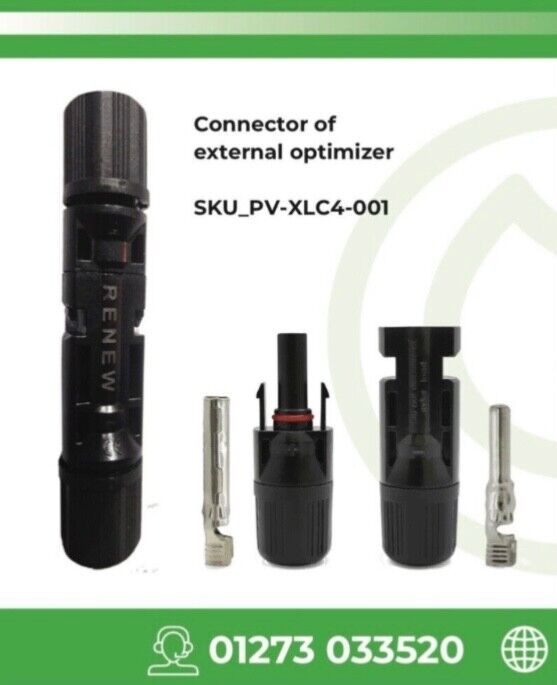

Solar Panel Cable Connectors, 50 packs
-50 packs: 100 male & 100 Female
-Rated Current: 16 Amp
-Max Voltage: 1000v
-Cable Diameter: 4mm
-Mated Protection: IP67
-Safety Class: 2
-Temp Rating: -40°C ~ +85°C
This cable connector set is rated up to 30A when using 6mm or 4mm wire and is suitable for use with 2.5mm wires at a lower rating.
Waterproof rating up to IP68. High quality construction with a tough PC body and silver plated copper connectors. Suitable for -40 to +85°C. TUV, UL and RoHS certified.
Can be installed on any conventional solar module junction box, or solar combiner box interconnection or added to solar modules with existing Type 4 connectors for extended distances. Greatly speeds up installation of solar array.
