Afore Single Phase Hybrid Inverter
Afore Single Phase Hybrid Inverter
SKU:AF3-3.6k-SL
Regular price
Ex VAT: £499.00
Inc VAT: £598.80
Sale price
Unit price
per
Ex VAT: £499.00
Inc VAT: £598.80
Regular price
Was:
£0.00
Any question? WhatsApp us Now!
Couldn't load pickup availability

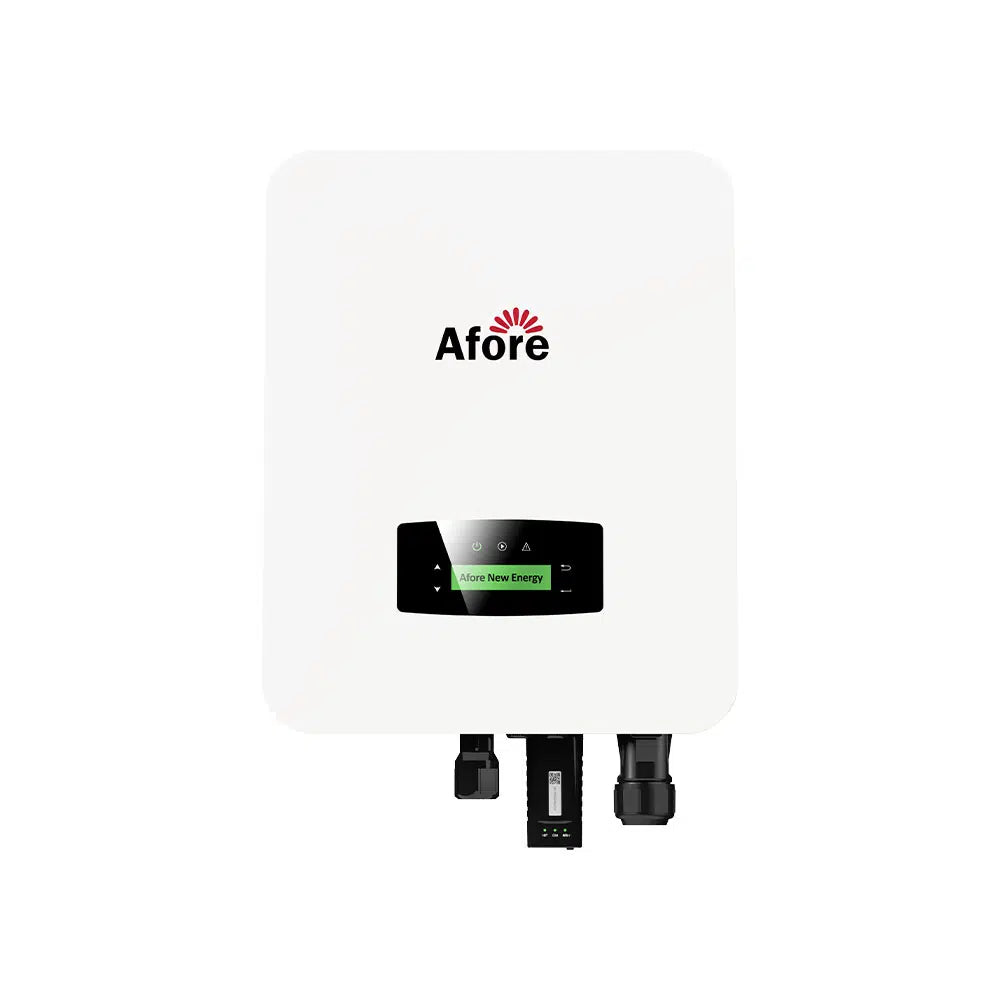

Afore AF3-3.6K-SL 3.6 kW Single Phase Hybrid Inverter
The Afore AF3-3.6K-SL is a high-performance single-phase hybrid inverter designed for residential solar energy storage systems. It supports seamless grid interaction and battery backup, allowing homeowners to maximize self-consumption and ensure uninterrupted power supply.
Key Features
- Rated Power: 3.6 kW (AC Output)
- Max PV Input: 5.4 kW
- Dual MPPT with wide voltage range (80 – 500 V)
- High conversion efficiency up to 97.6%
- Supports Li-ion and Lead-acid batteries
- UPS mode with switch time < 10 ms
- 150 % overload capacity in backup mode
- Integrated AFCI & rapid shutdown
- Anti-feed-in function and time-of-use optimization
- IP65 protection for outdoor installation
- Smart monitoring via Wi-Fi / RS485 / CAN / 4G
Technical Specifications
| Max PV Input Power | 5.4 kW |
|---|---|
| Max PV Voltage | 550 V |
| MPPT Voltage Range | 80 – 500 V |
| Max Input Current | 18.5 A × 2 |
| Battery Voltage Range | 40 – 60 V |
| Max Charge / Discharge Power | 3.6 kW |
| AC Output Power | 3.6 kVA |
| Nominal Voltage | 220 / 230 V |
| Nominal Frequency | 50 / 60 Hz |
| Max Efficiency | 97.6 % |
| Protection Rating | IP65 / NEMA4X |
| Cooling | Intelligent fan |
| Dimensions (W×H×D) | 370 × 535 × 192 mm |
| Weight | 18.5 kg |
Certifications
- NRS097, G98 / G99, EN50549-1, C10 / C11, AS4777.2
- VDE-AR-N4105, VDE0126, IEC62109-1 / 2
- EMC: EN61000-6-2 / EN61000-6-3
Perfect for homeowners seeking reliable, smart, and efficient solar energy storage.
