SolarFlash® Slate Refit (For Existing Slate Roofs)

Designed for a maximum slate length of 600mm (24”)

Slate Refit Kit includes:

1 x Large SolarFlash®

3 x Hallhooks® & 1 x Hookpull®

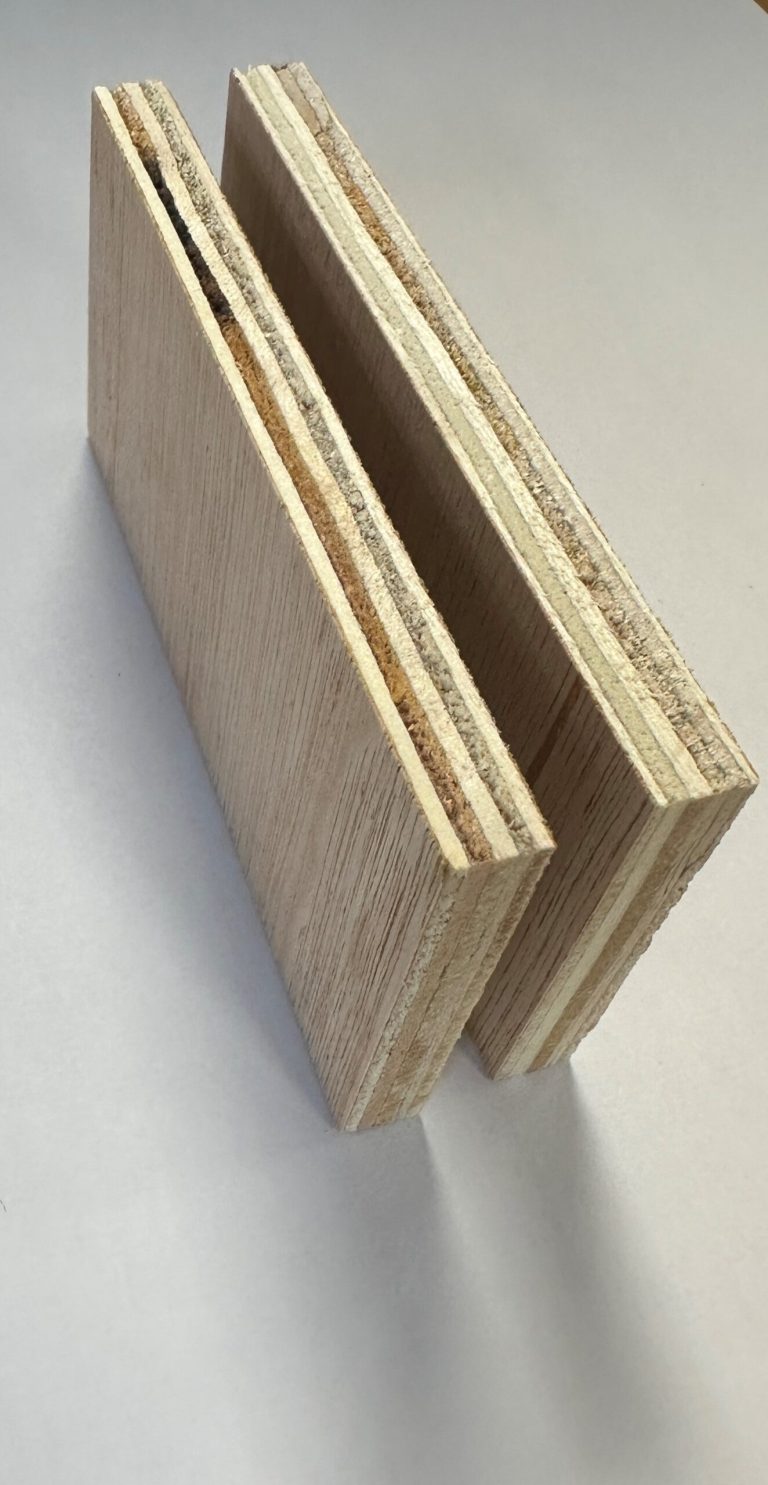

2 x Wooden shims (packings)

1 x Foam Insert

3 x Compensation hooks

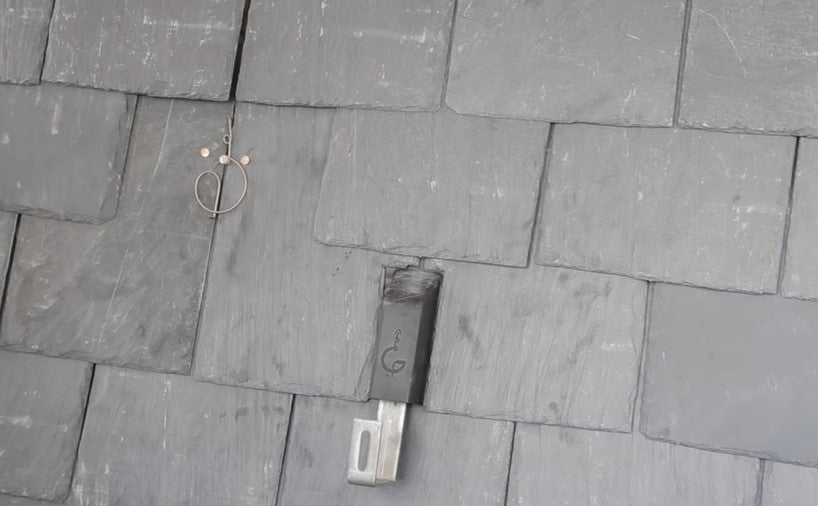

The SolarFlash® Slate Refit Kit is designed to be used on slate roofs; natural and manmade slate. The Slate Refit kit should be used on roof retro-fit installations.  This kit comes with the metal components which allow you to replace the final course of slates when the nail holes are not accessible. The dimensions of the ‘Large’ SolarFlash® are 365mm width/365mm length,  The hood is 50mm wide/140mm length/40mm depth (the hood is the same size on all types of SolarFlash).  The length of the ‘Large SolarFlash is based on slates being double lap (up to 100mm head lap).  The patented Hallhook® allows you to replace a slate when you cannot access the nail holes. The Hallhook only works on Hip holed slates and on head laps not less than 75mm and not greater than 100mm.

The ‘Large’ SolarFlash is designed to work on a maximum slate length of 600mm (24*). As a guide, slate sizes are marked on the SolarFlash® which can be trimmed or nailed through

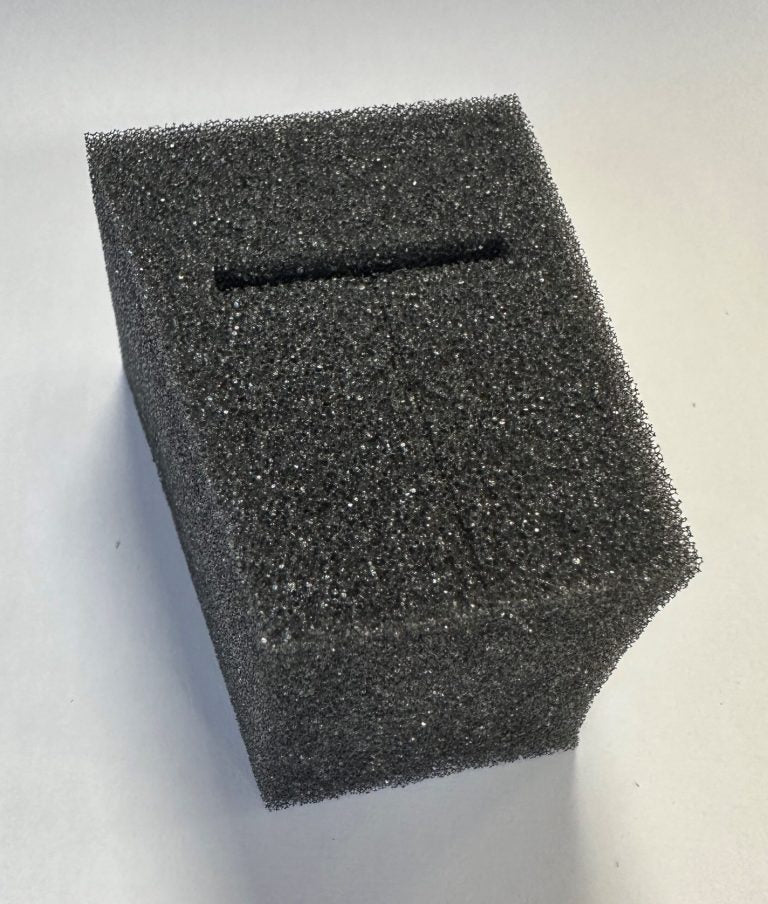

There is a foam included in each kit which is required to seal the hood.  The foam was designed with snow in mind to stop wind taking light snow into the roof.
